GAMMALITE™GL8410
GL 8410 Gammalite™ Alloy represents a new class of lightweight structural materials engineered for environments where conventional alloys lose stability, strength, or dimensional control. At its core, GL 8410 is built on a stabilized gamma‑phase intermetallic framework, a crystallographic architecture known for its ability to maintain rigidity and load‑bearing capability under sustained thermal and mechanical stress. Unlike alloys that rely on ceramic dispersoids or secondary reinforcements, GL 8410 achieves its performance solely through rare‑earth enrichment and controlled phase stabilization. This approach produces a clean, uniform microstructure with exceptional resistance to creep, oxidation, and microstructural coarsening — even during long‑duration exposure to elevated temperatures. The gamma‑phase backbone provides a tightly ordered lattice that resists deformation, while rare‑earth additions refine the magnesium-rich microstructure, suppress unwanted phase transformations, and enhance high‑temperature stability. With a density of 1.93 g/cm³, an ultimate tensile strength of 600 MPa, yield strength of 550 MPa, hardness of 160 HV, elastic modulus of 70 GPa, and demonstrated creep stability to 350 °C, GL 8410 is an ideal candidate for engine mounts and structural frames, lightweight armor plates, exhaust manifolds, and electronics housings.
Alloy Structure
GL 8410 is a proprietary lightweight alloy enriched with rare-earth elements and stabilized by a gamma‑phase intermetallic framework. This gamma‑phase structure provides exceptional high‑temperature strength and creep resistance, ensuring dimensional stability under prolonged thermal and mechanical loads. Rare‑earth enrichment further reinforces the microstructure, preventing phase transformation, grain boundary sliding, and other degradation mechanisms that typically limit the performance of conventional lightweight alloys. The stabilized intermetallic network also enhances oxidation resistance and surface stability, reducing ignition risk even without the buffering effect of ceramic dispersoids. Together, these characteristics yield an alloy that is strong, thermally resilient, and engineered for demanding aerospace, defense, automotive, marine, and energy applications where long‑term reliability and strength‑to‑weight efficiency are essential

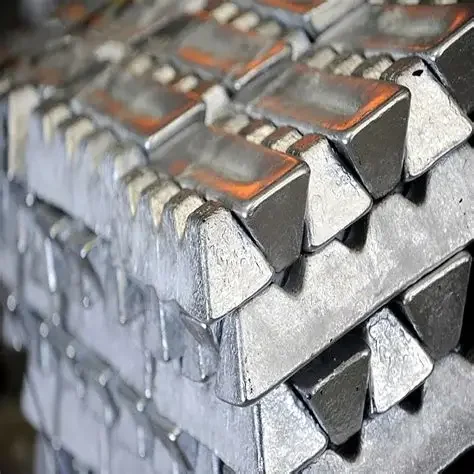

GL 8410 can be cast to near-net shapes with good quality when thermal gradients and cooling rates are controlled. Post-cast homogenization is recommended to alleviate segregation, stabilize the gamma-phase intermetallic framework, and prepare the microstructure for subsequent deformation or heat treatment. Casting is a viable starting route for components that will be refined by extrusion or forging.
FAST enables rapid densification of GL 8410 powder under simultaneous electrical current and pressure, producing dense billets with refined grains and stable rare-earth intermetallic phases. For the alloy variant, FAST is particularly effective as a billet-consolidation step prior to extrusion or forging, where the simplified chemistry (no ceramic dispersoids) streamlines parameter control. FAST can also form complex near-net shapes that are finished via CNC machining to tight tolerances.
Forging of GL 8410 (from cast or FAST-consolidated billets) improves toughness, fatigue performance, and dimensional stability. Moderate strain rates with appropriate thermal conditioning help maintain the gamma-phase stability and limit grain coarsening. Closed-die or open-die forging can achieve near-net geometries for brackets, housings, and load-bearing components where creep resistance to ~325–350 °C is required.
Extrusion is an excellent route for GL 8410, promoting microstructural refinement and mechanical uniformity along the flow direction. Elevated temperature with controlled strain rate yields continuous profiles, tubes, and casings with consistent wall thickness and improved fatigue resistance. High-ratio extrusion can develop weak-to-moderate texture that enhances strength without compromising toughness, making this route ideal for aerospace and automotive structures.
Powder-bed fusion (e.g., SLM) and binder jet routes are applicable to GL 8410 for lattices, conformal channels, and complex internal features not achievable by machining. Parameter optimization focuses on densification, microcrack suppression, and oxidation control, followed by heat treatment to stabilize precipitates and enhance mechanical performance. Printed parts are typically finish-machined to final tolerance and surface quality.
GL 8410 responds well to solution treatment, quenching, and aging to reach peak strength. Solutionizing dissolves solute-rich phases and homogenizes the matrix, while quenching retains a supersaturated solid solution for subsequent precipitation during aging. Tailored aging schedules balance yield strength, UTS, and ductility, with the rare-earth precipitate population supporting creep resistance up to ~325–350 °C.
GL 8410 machines cleanly with conventional tooling; no special tooling is required. The alloy’s stable intermetallic framework supports tight tolerances and consistent surface finish across turning, milling, drilling, and threading. Standard coolant and chip-control practices are sufficient. Typically, feeds and speeds are increased by ~80% compared to traditional aluminum alloy machining.
Weldability is limited and requires compatible filler metals and appropriate shielding gas to preserve oxidation resistance and avoid hot cracking. Pre-weld cleaning and controlled heat input reduce defect formation and microstructural softening adjacent to the fusion zone. Where practical, designers should prefer mechanical joining or weld-free architectures; if welding is essential, procedure qualification is strongly recommended.
GL 8410 is compatible with anodizing, electrophoretic coatings, conversion coatings, and metal plating to enhance corrosion resistance and wear durability. Anodizing improves surface hardness and corrosion resistance; e-coats offer uniform coverage on complex geometries; conversion coatings promote paint/adhesive bond strength; and nickel/chrome plating provides additional wear protection. In marine or galvanically aggressive environments, coatings and isolation strategies are recommended to manage corrosion risk.

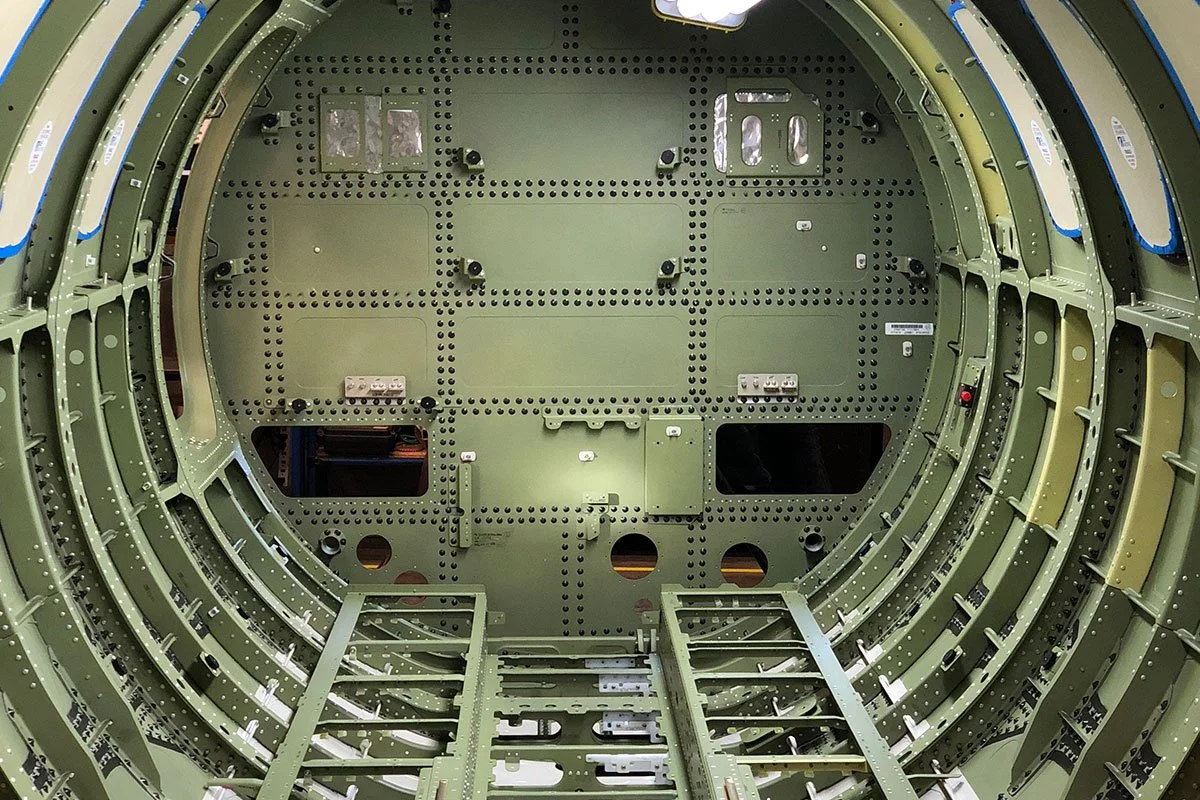

Aerospace Engine Mounts and Structural Frames
In aerospace engineering, every kilogram saved translates directly into improved fuel efficiency, payload capacity, and mission endurance. Engine mounts and structural frames are particularly critical, as they must withstand continuous vibration, fluctuating thermal loads, and long-duration stresses without compromising safety or performance. GL 8410 billets, when forged or extruded, can be shaped into near-net components that deliver exceptional dimensional stability and mechanical reliability. The alloy’s rare-earth intermetallic phases provide a robust defense against creep, ensuring that mounts retain their integrity even during extended high-thrust missions or orbital operations. Forging routes enhance toughness and fatigue resistance, making the mounts resilient to cyclic stresses encountered during takeoff, landing, and repeated flight maneuvers. Extrusion, on the other hand, enables the production of frames and profiles with uniform wall thickness and consistent mechanical properties, reducing the risk of localized weak points. Together, these processing methods allow GL 8410 to achieve a balance of lightweight efficiency and structural durability. By integrating this alloy into aircraft frames and engine support systems, designers can reduce overall mass while maintaining the mechanical consistency required for long service life. The result is a material solution that not only meets the stringent demands of aerospace certification but also contributes directly to performance gains in next-generation aircraft platforms.
Defense Lightweight Armor Panels via Additive Processes
Modern defense systems demand materials that deliver protection without compromising mobility. Traditional monolithic armor plates provide strength but often add significant weight, limiting soldier agility and increasing fatigue in the field. GL 8410 addresses this challenge through its exceptional strength-to-weight ratio and oxidation resistance, making it an ideal candidate for next-generation armor solutions. By leveraging additive manufacturing, GL 8410 can be formed into lattice-reinforced armor panels with complex internal geometries that redirect and dissipate impact energy more effectively than solid plates. These engineered lattices act as shock absorbers, dispersing ballistic forces across multiple pathways while maintaining structural integrity. The alloy’s rare-earth phases stabilize the microstructure under repeated ballistic and thermal loads, ensuring consistent performance even after multiple engagements. Equally important, GL 8410’s low density reduces the overall burden carried by soldiers, enabling faster movement, longer endurance, and improved operational effectiveness. Combined with its oxidation resistance, the alloy maintains durability in harsh environments, from desert heat to maritime humidity. The result is a material solution that enhances survivability while supporting the agility and endurance required in modern combat operations.

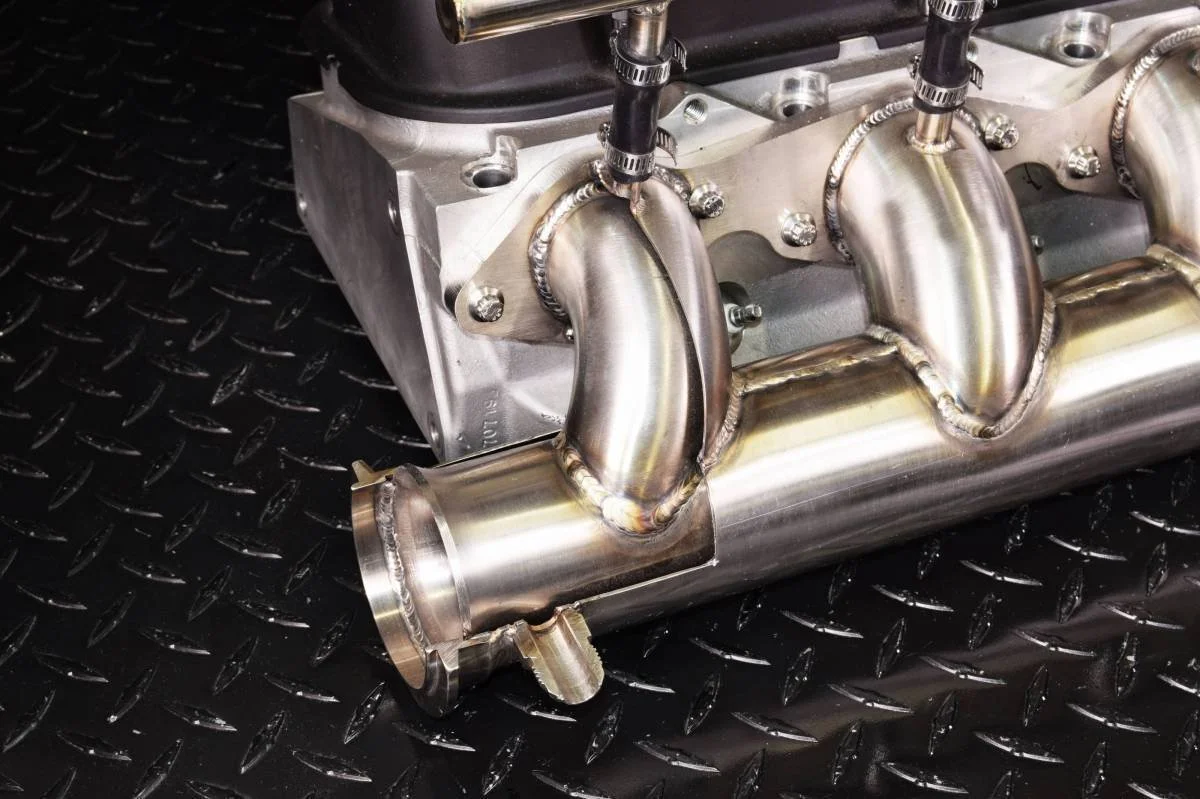

Automotive Exhaust Manifolds and Heat Sheilds
High-performance automotive engines operate in some of the harshest mechanical environments, where exhaust components are exposed to extreme temperatures, corrosive combustion gases, and rapid thermal cycling. Traditional alloys often struggle to balance durability with the lightweight requirements of modern vehicle design. GL 8410 offers a solution by combining low density with rare-earth stabilized strength, making it particularly well-suited for exhaust manifolds and thermal shielding systems. Billets of GL 8410, shaped through forging or extrusion, can be engineered into complex manifolds and precision heat shields that maintain dimensional stability under sustained load. The alloy’s rare-earth phases reinforce the microstructure, preventing creep and distortion even during prolonged high-RPM operation. Its oxidation resistance ensures that surfaces remain intact against aggressive exhaust gas exposure, reducing scaling and degradation over time. By integrating GL 8410 into these critical components, automotive designers gain efficiency improvements through reduced thermal distortion, extended service life, and lower overall system weight. This not only enhances engine performance and reliability but also supports broader industry goals of fuel economy and emissions reduction. In motorsport and advanced consumer vehicles alike, GL 8410 enables exhaust systems that are lighter, tougher, and more resilient than those built from conventional alloys
Energy Storage System Casings
Next-generation energy systems rely on materials that can withstand cyclic thermal shocks, mechanical stresses, and corrosive environments without losing dimensional precision. Battery modules, inverters, and thermal management blocks are particularly demanding, as they must balance lightweight construction with long-term reliability under fluctuating loads. GL 8410, with its rare-earth stabilized gamma-phase structure, offers a compelling solution when produced through casting or molding routes. Casting enables near-net-shape housings with controlled cooling and homogenization, which refine the microstructure and stabilize the intermetallic framework. This ensures that components retain their strength and creep resistance even after repeated thermal cycling. Molding, meanwhile, allows for the creation of complex geometries—such as integrated cooling channels or ribbed casings—that reduce machining requirements and improve efficiency in large-scale production. The alloy’s thermal conductivity supports rapid and efficient heat transfer, preventing localized hotspots in power electronics and energy storage systems. Its creep resistance ensures that housings maintain dimensional stability over years of service, even in marine or renewable energy platforms exposed to harsh operating conditions. By combining lightweight efficiency with durability, GL 8410 enables designers to push the boundaries of energy system performance, delivering casings and housings that are both structurally resilient and thermally optimized for long-term operation
